Quick Details

  • Type: Other
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Seamark ZM
  • Model Number: ZM-R6823
  • Voltage: 220V
  • Current: 20A
  • Rated Capacity: Max 5800W
  • Rated Duty Cycle: 60%
  • Dimensions: L760*W850*H950mm(LCD stand not included), L760*W850*H950mm(LCD stand not included)
  • Weight: 149kg
  • Usage: Repair , soldering , reballing
  • Certification: CE ; ISO 9001:2008
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Electrical materials: Servo Drive( Panasonic)+Panasonic PLC
  • Heater power: op heater 800W bottom 800W IR 4000W
  • Hot air heating temperature: 400 Max
  • Positioning: V-groove, PCB supportlaser automatic positioning
  • PCB size: Max 560*470mm Min 15*20 mm
  • BGA chip: Max 80*80mm Min 2*2 mm
  • Sensors: 4pcs
  • Color: Silver white+blue

Packaging & Delivery

Packaging Details: Standard wooden box with foam inside
Delivery Detail: 1-7 working days
Product Description

                                            ZM-R6823 BGA Rework Station

ZM-R6823 BGA Rework Station

With CE certification, emergency button and abnormal incident power off automatically protect device, with protective screening, to protect the operator and the spare parts from damage. After de-soldering and soldering, there is alarming. When temperature goes out of control, the circuit will automatically power off. It is of double over-temperature protection function. Temperature parameter has a password to avoid from arbitrary changes, with superior safety protection functions, can protect PCB board components and the machine from damage at any abnormal situation。

SPECIFICATIONS AND TECHNICAL PARAMETERS
Voltage
AC 380V 50/60Hz
Total Power
Max 5800W
Heater power
top heater 800W bottom 800W IR 4000W
Hot air heating temperature
400 Max
Electrical materials
Servo Drive( Panasonic)+10”Touch screen+Panasonic PLC+

Precision Thermal control system

Temperature control
K-type thermocouple (Closed Loop)
Positioning
V-groove, PCB support + laser automatic positioning
PCB size
Max 560×470mm Min 15×20 mm
BGA chip
Max 80×80mm Min 2×2 mm
Usage
BGA Reballing for PCB A soldering and desoldering

Main Features

●3 independent control heaters:

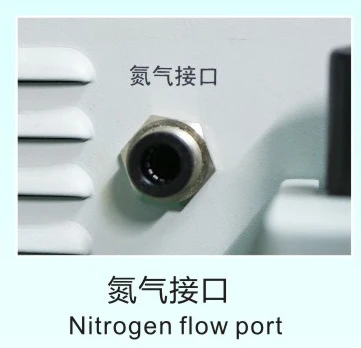

①Integrated design of top heater with efficient ceramic heater; Air source , including compressed air and nitrogen, is changed freely to meet repairing requests.

②It is convenient to use bottom heater and top heater in the meantime by the system of synchronized
operation and electric lift.

③Large size IR heater, high performance heat pipes and the micro crystal plate so that preheat PCB
thoroughly.

● Precise optical alignment system
Adopt adjustable CCD color optical system, with a beam split, zoom in, zoom out and micro-adjust functions, has automatic chromatism resolution and brightness adjustment system, can adjust the clearness of the image, with 15” HD monitor. High automatic can avoid human error, can repair the lead-free socket 775 and double deck BGA chipset very well.it is good for lead-free repairing.

● Multi-function operation system

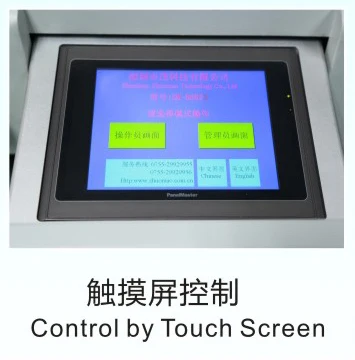

①Adopt high definition human-machine interface, available for setting “set up” and “operate” to
avoid error set tings, The top heater device and mounting head 2 in 1 design, leadscrew drive, Z
axis controlled by Panasonic servo control system, can control the positioning precisely.
With automatic identify BGA chips and mounting height; it is of automatic soldering and de-soldering function. after start, it will show 3 temperature curves on the touch screen, the precision
With ±3℃.Heating temperature, time, slope, cooling, alarming all shown on the touch screen.
Adopt all kinds of BGA nozzles, with 360℃ rotation, easy for installation and replacement,
customized is available;

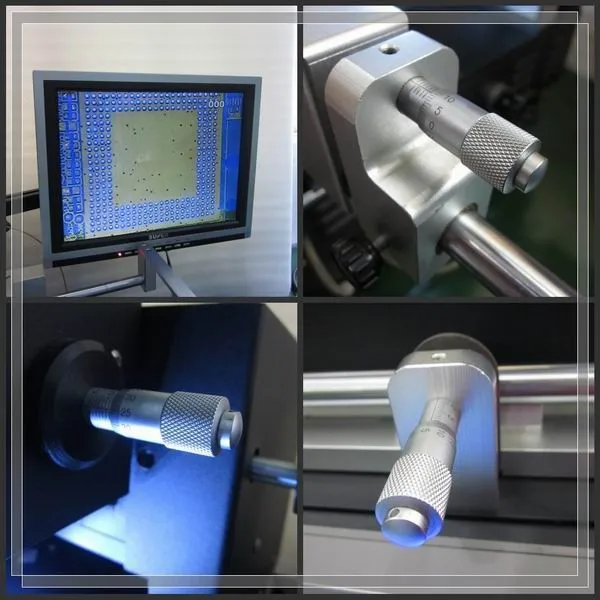

②the alignment system is controlled by rocker, the optical lens can be moved left and right, back
and forth freely by rocker. It can observe all aspects of the BGA chip. It displays clearly. The X
Y axis and R angle with micrometer adjust, precise positioning, alignment accuracy is within
± 0.01MM. with”+”infrared laser light for fast positioning, after positioning, it is locked
automatically.

③It can save multiple groups profiles, and analyze, set and reverse the temperature curves at any
time, You can print, save and analyze the curve through the USB port without other external
devices (such as computer). Mounting and de-mounting chips automatically.

④V-groove PCB support, with rapid, convenient and accurate positioning, can fit for all kinds of
PCB board; Flexible and removable universal fixture has protective effects and no damage to
the PCB board, suitable for all kinds of sizes of BGA repair.

Detailed Images
Machine Parts

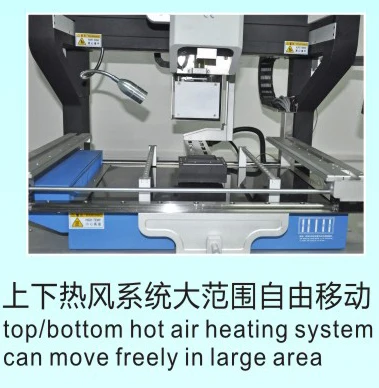

Name: Top/bottom hot air heating system
Brand: Seamark ZM
Original: China

can move freely in large area




Machine Parts

Name: Self-created mounting pressure control system
Brand: Seamark ZM
Original: China

 the mounting pressure controlled below 8 grams

Machine Parts

Name: Pad IR preheating system
Brand: Seamark ZM
Original: China




Machine Parts

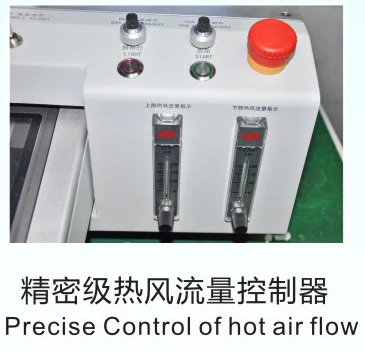

Name: Precise Control of hot air flow
Brand: Seamark ZM
Original: China



Certifications
Packing & Delivery
Packaging
Size
760(L) * 850 (W) * 950mm (D)
Weight
160KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.


* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

FAQ
1. How about the package ? Is it safe during the delivery ?
All BGA rework machine is packed by standard strong wooden carton with foam inside.
It is safe when shipping.
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
4, This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our BGA machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.
We will provide the English user manual for free , and the operation video is available.
5, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
6. What is the payment way ?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.
